Amana 45950 Core Box Router Bit


Profiling Router Bits: Core Box Router Bits, Carbide Tipped: 1/4" Rad x 1/2" Dia x 3/8" x 1/4" Shank with Upper BB

Designed for fluting and 'V' grooving cuts guided by a template or pattern. The shank-mounted ball-bearing pilot rides along the template edge, and the cutter duplicates the template contour in the workpiece. With a handheld router, the template must be on top of the workpiece. With a table-mounted router, the template must be on bottom of the workpiece.

Standard Equipment:

  • 45950 Core Box Router Bit

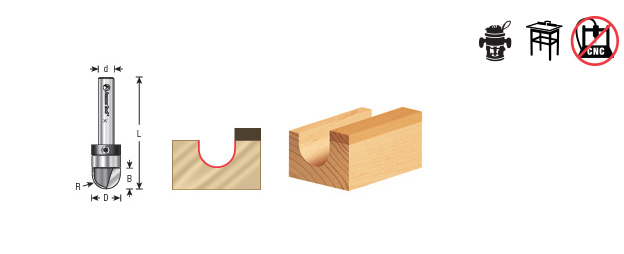

  • Radius (R): 1/4"
  • Diameter (D): 1/2"
  • Cutting Height (B): 3/8"
  • Shank (d): 1/4"
  • Overall Length (L): 2"
  • Flutes: 2
  • Replacement Collar: 47724
  • Replacement Bearing: 47701


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
