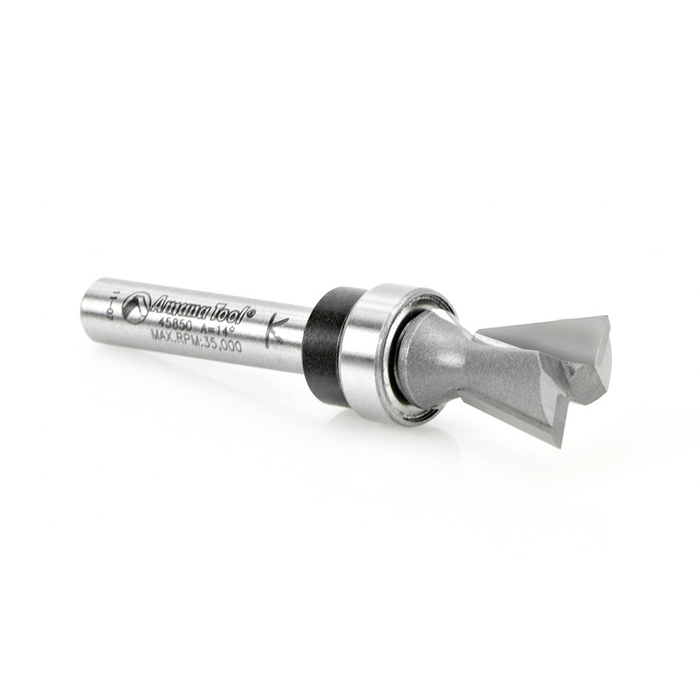

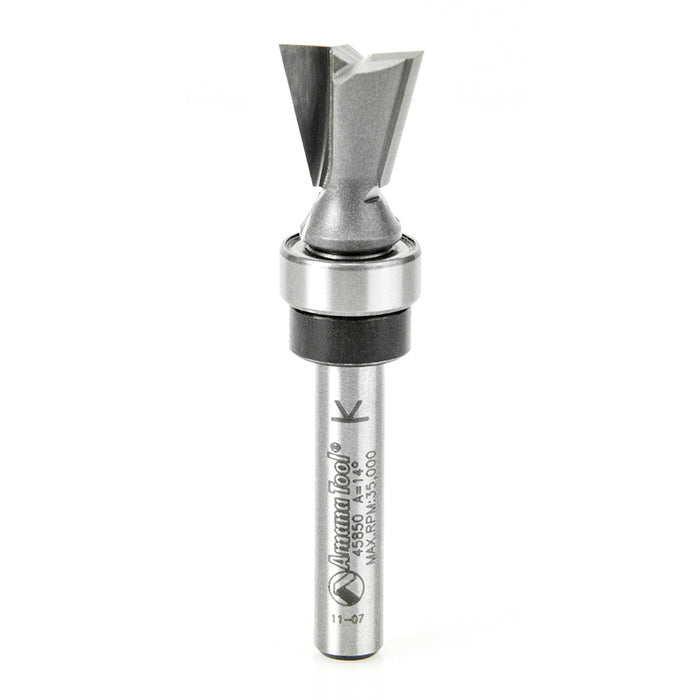

Amana 45850 Carbide Tipped Dovetail Router Bit


$36.00
SKU AMAN45850

Jointing Router Bits: Dovetail Router Bits: 14° x 1/2" Dia x 1/2" x 1/4" Shank

This dovetail bit has a shank-mounted ball bearing guide for routing dovetail slots following a template and pattern routing. The template must be mounted between the workpiece and the router. With a handheld router, the template must be on top of the workpiece. With a table-mounted router, the template must be underneath the workpiece.

Standard Equipment:

  • 45850 Dovetail Router Bit

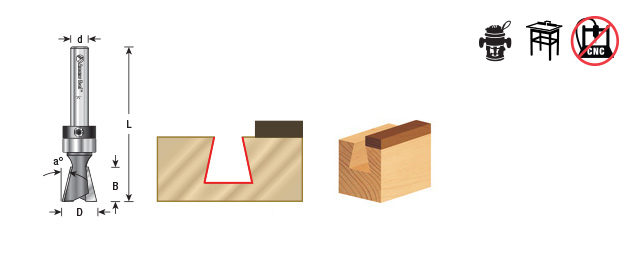

Specifications:

  • Diameter (D): 1/2"
  • Angle (a¬∞): 14¬∞
  • Cutting Height (B): 1/2"
  • Shank (d): 1/4"
  • Overall Length (L): 2-1/4"
  • Flutes: 2

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
