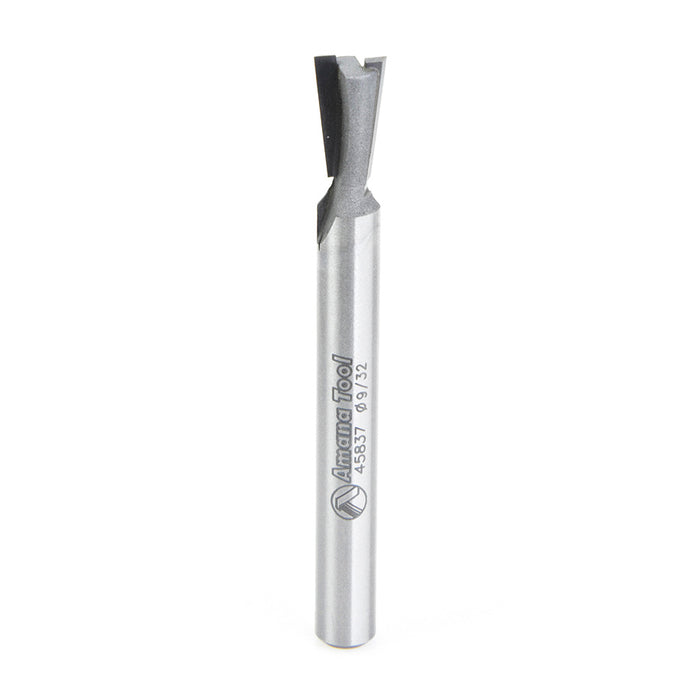

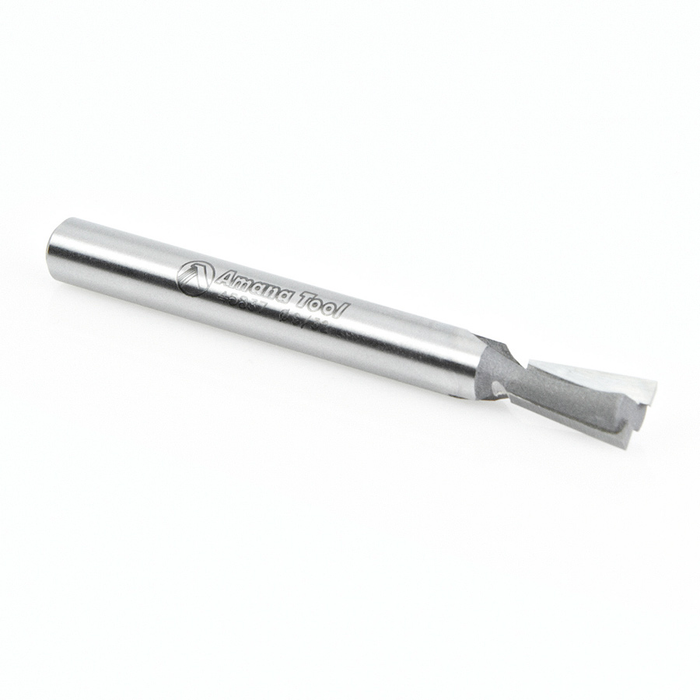

Amana 45837 Carbide Tipped Dovetail Router Bit


$16.00
SKU AMAN45837

Jointing Router Bits: Dovetail Router Bits: 7° x 9/32" Dia x 1/2" x 1/4" Shank

Industrial quality carbide tipped bits for the Porter Cable Jig 4212.

Standard Equipment:

  • 45837 Dovetail Router Bit

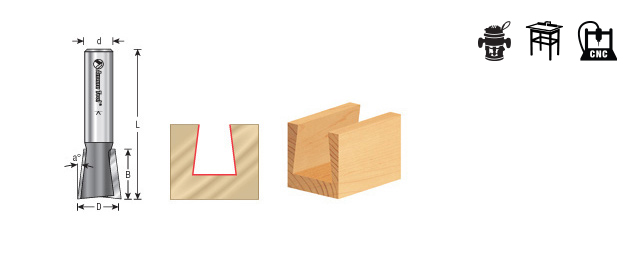

Specifications:

  • Diameter (D): 9/32"
  • Angle (a¬∞): 6.24¬∞
  • Cutting Height (B): 1/2"
  • Shank (d): 1/4"
  • Overall Length (L): 2-13/32"
  • Flutes: 2

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
