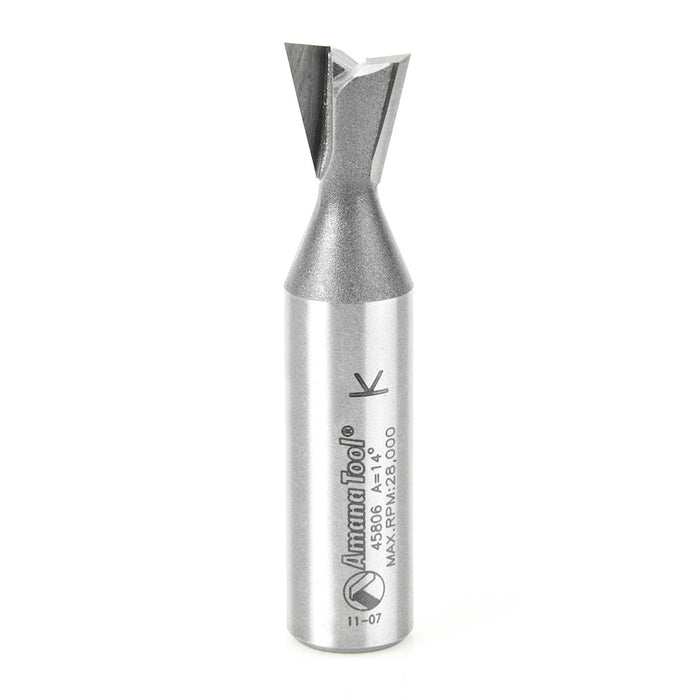

Amana 45806 Carbide Tipped Dovetail Router Bit


$24.00
SKU AMAN45806

Jointing Router Bits: Dovetail Router Bits: 14° x 1/2" Dia x 0.532" x 1/2" Shank

The 14° dovetail bit is used with common half-blind dovetail jigs, as well as with Omnijig, Incra and Leigh jigs.

Standard Equipment:

  • 45806 Dovetail Router Bit

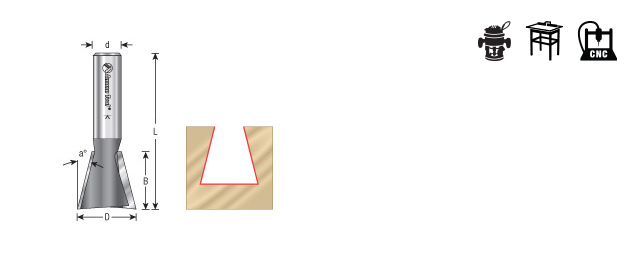

Specifications:

  • Diameter (D): 1/2"
  • Angle (a¬∞): 14¬∞
  • Cutting Height (B): 0.532"
  • Shank (d): 1/2"
  • Overall Length (L): 2-1/2"
  • Flutes: 2

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
