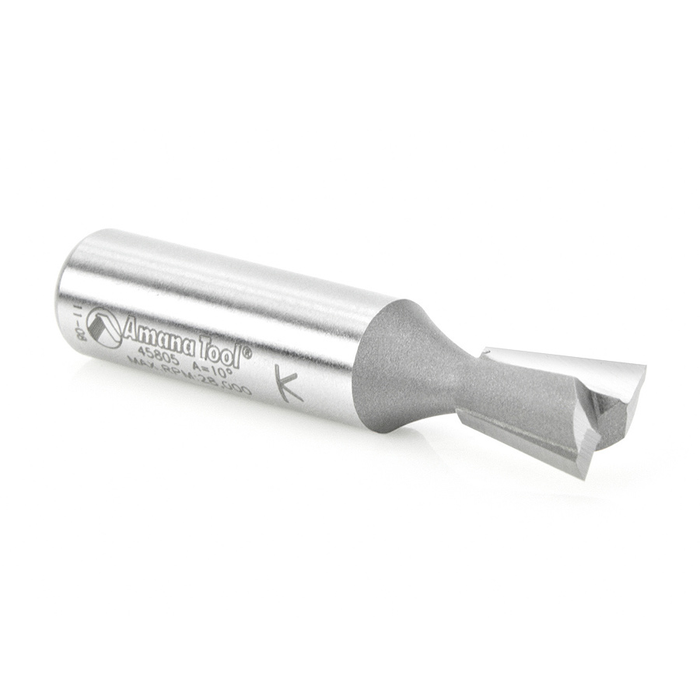

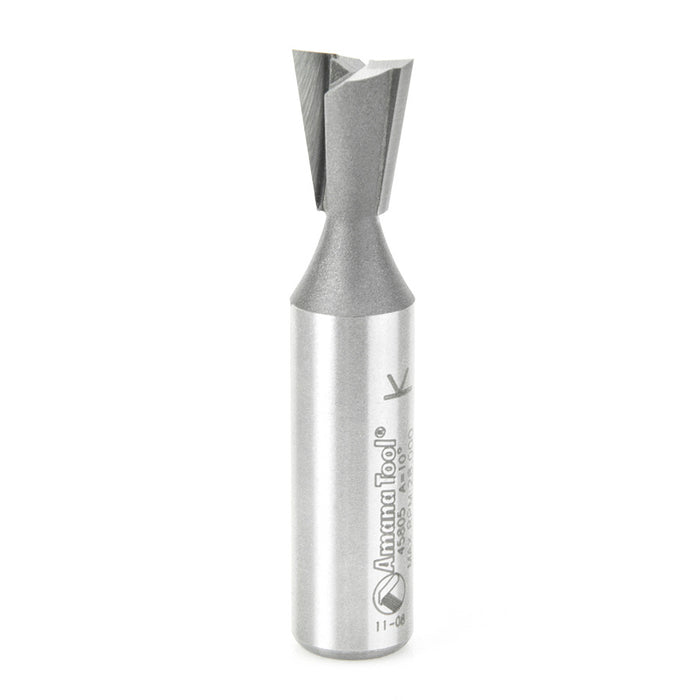

Amana 45805 Carbide Tipped Dovetail Router Bit


Jointing Router Bits: Dovetail Router Bits: 10° x 1/2" Dia x 5/8" x 1/2" Shank

The 10° dovetail bit is used with the Incra and Leigh dovetail systems.

Standard Equipment:

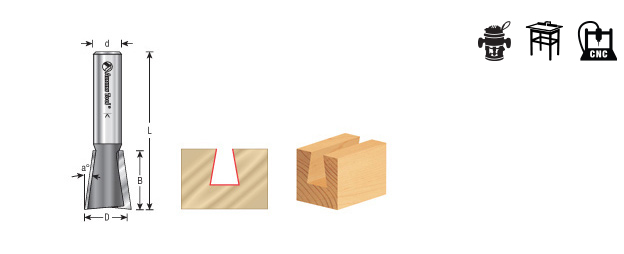

  • 45805 Dovetail Router Bit


  • Diameter (D): 1/2"
  • Angle (a¬∞): 10¬∞
  • Cutting Height (B): 5/8"
  • Shank (d): 1/2"
  • Overall Length (L): 2-5/8"
  • Flutes: 2


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
