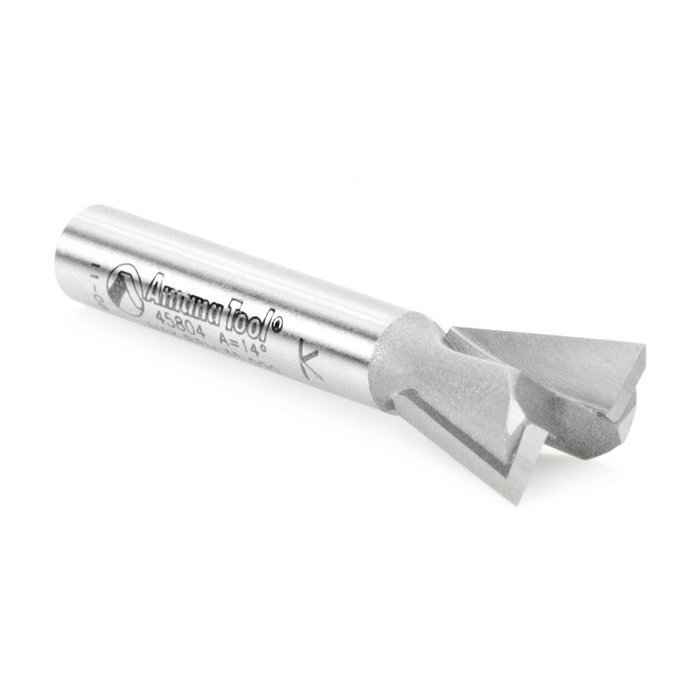

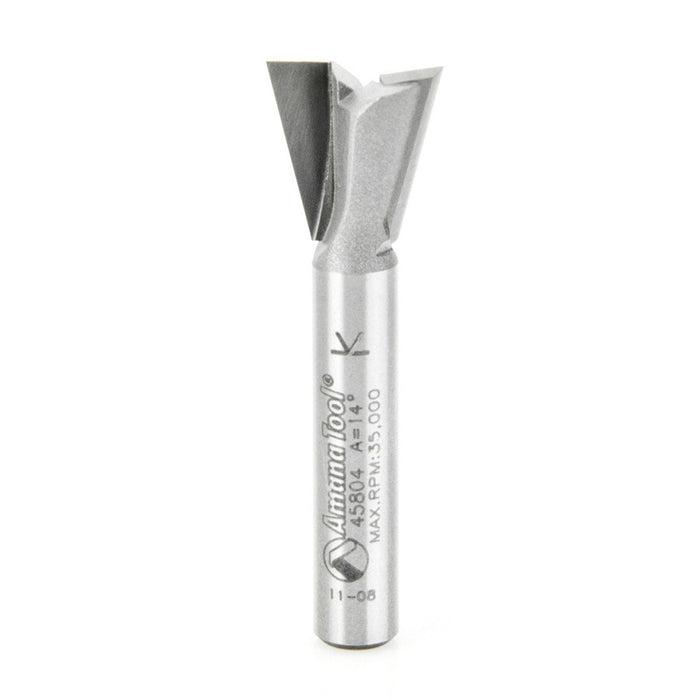

Amana 45804 Carbide Tipped Dovetail Router Bit

Jointing Router Bits: Dovetail Router Bits: 14° x 1/2" Dia x 1/2" x 1/4" Shank

The 14° dovetail bit is used with common half-blind dovetail jigs, as well as with Omnijig, Incra and Leigh jigs.

Standard Equipment:

• 45804 Dovetail Router Bit

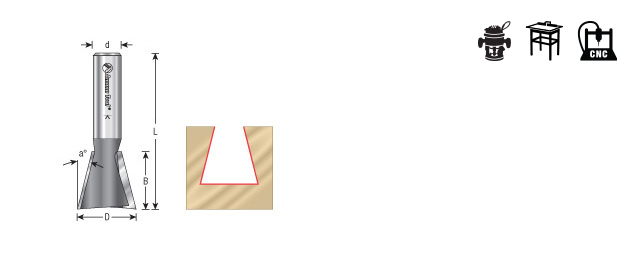

Specifications:

• Diameter (D): 1/2"
• Angle (a¬∞): 14¬∞
• Cutting Height (B): 1/2"
• Shank (d): 1/4"
• Overall Length (L): 1-3/4"
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
