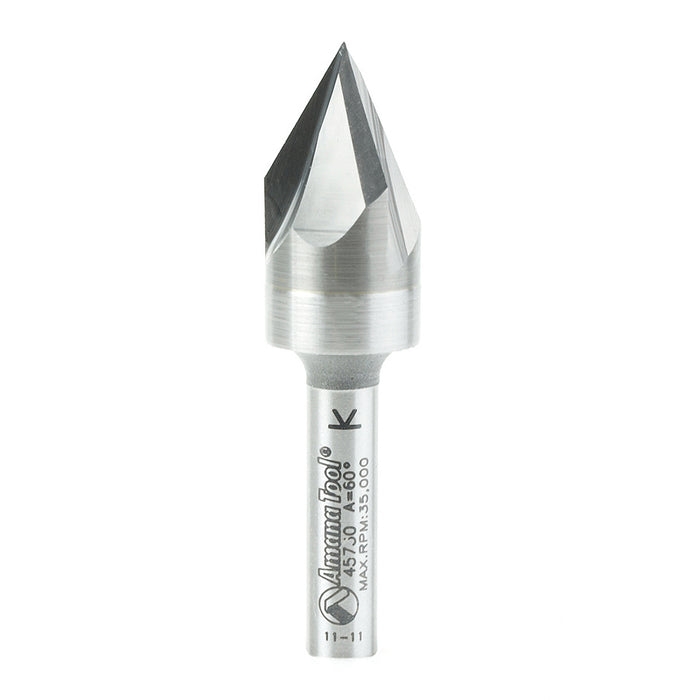

Amana 45730 Solid Carbide Signmaking & Lettering Router Bit


Signmaking Router Bits: V-Groove Router Bits, Solid Carbide: 60° x 9/16" Dia x 7/16" x 1/4" Shank

Originally developed in Europe specifically for professional signmakers, this solid-carbide bit features an extra-fine 60° point that produces a clean, precise cut. For those intricate lines, this bit is superior to standard 'V' groover. Makes crisp, clean cuts in solid woods, MDF and acrylics.

Standard Equipment:

  • 45730 Solid Carbide V-Groove Router Bit

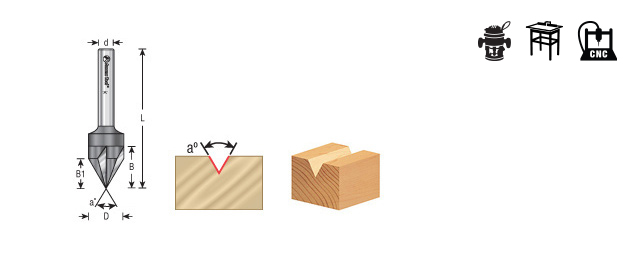

  • Diameter (D): 9/16"
  • Angle (a°): 60°
  • Cutting Height (B): 1/2"
  • B1: 7/16"
  • Shank (d): 1/4"
  • Overall Length (L): 2-1/4"
  • Flutes: 3


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
