Amana 45662 T-Slot Square Edge Router Bit

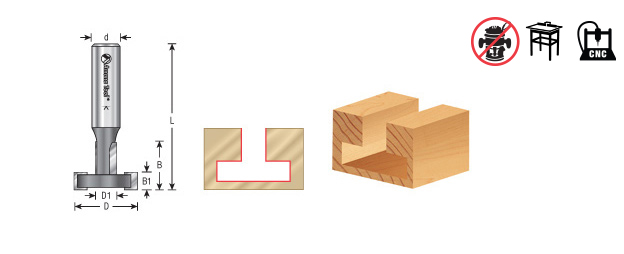

Jointing Router Bits: T-Slot Router Bits: 1-3/8" Dia x 7/8" x 1/2" Shank

Designed for creating T-slot wall panels (used to cut their characteristic slots for many purposes) and radiused edges on the T-slots (allow easier adjustment of fixtures on the completed wall panels). For best results use in CNC and table-mounted routers.

Standard Equipment:

  • 45660 T-Slot Square Edge Router Bit


  • Diameter (D): 1-3/8"
  • Cutting Height (B): 7/8"
  • Shank (d): 1/2"
  • B1: 3/8"
  • D1: 1/2"
  • Overall Length (L): 2-1/2"
  • Flutes: 2


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
