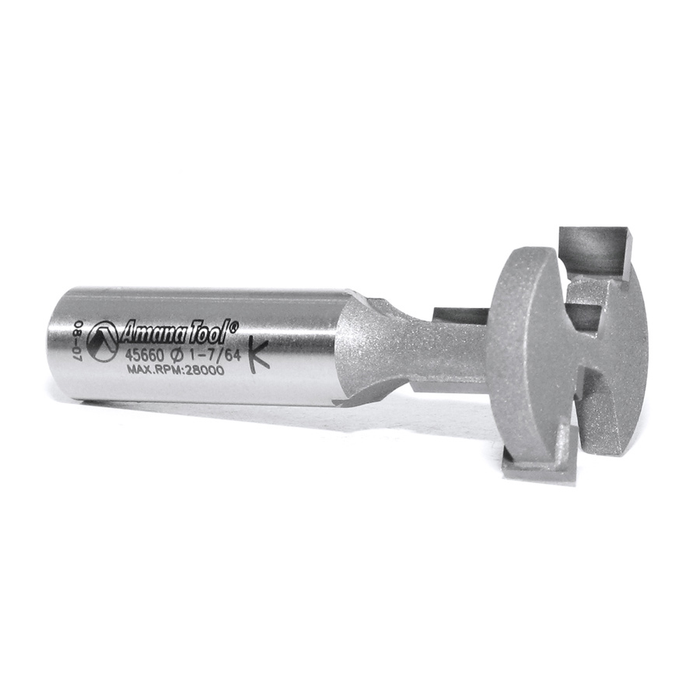

Amana 45660 T-Slot Square Edge Router Bit

Jointing Router Bits: T-Slot Router Bits: 1-1/8" Dia x 13/16" x 1/2" Shank

Designed for creating T-slot wall panels (used to cut their characteristic slots for many purposes) and radiused edges on the T-slots (allow easier adjustment of fixtures on the completed wall panels). For best results use in CNC and table-mounted routers.

Standard Equipment:

• 45660 T-Slot Square Edge Router Bit

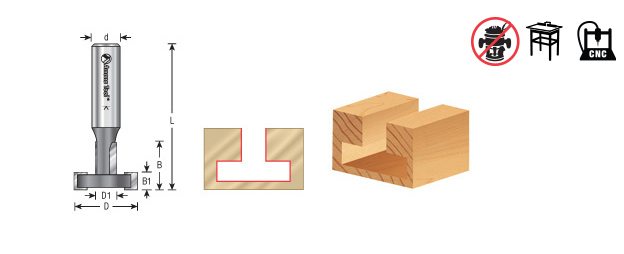

Specifications:

• Diameter (D): 1-1/8"
• Cutting Height (B): 13/16"
• Shank (d): 1/2"
• B1: 5/16"
• D1: 3/8"
• Overall Length (L): 2-1/2"
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
