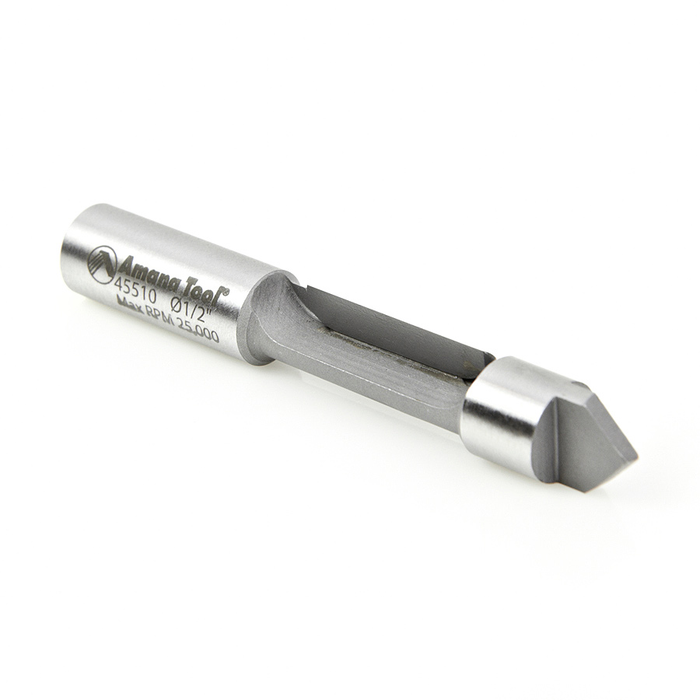

Amana 45510 Concave Grind Panel Pilot Router Bit


Trimming Router Bits: Panel Pilot Router Bits, Carbide Tipped: 1/2" Dia x 1-3/16" x 1/2" Shank

These panel pilot bits have a pointed tip for plunge cuts and a special grind for speed and an integral solid pilot. It is designed for fast cut-out work and is used extensively in the movile/motor homes, caravans, star wagons, trailers, coaches, RV industries and shed manufacturers.

The single-flute version cuts fast and produces an excellent finish.

Standard Equipment:

  • 45510 Concave Grind Panel Pilot Router Bit

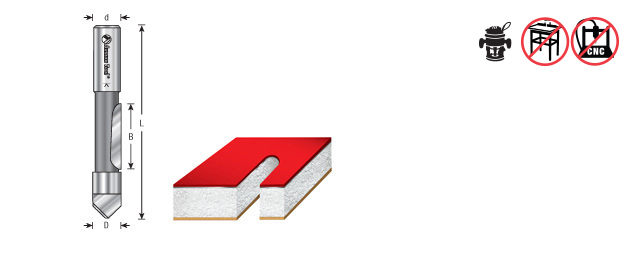

  • Diameter (D): 1/2"
  • Cutting Height (B): 1-3/16"
  • Shank (d): 1/2"
  • Overall Length (L): 3-1/2"
  • Flutes: 1


  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
