Makita 7104L Chain Mortiser

The Makita 7104L Chain Mortiser is engineered with power and accuracy features and is ideal for timber framing and log home building. The 10.5 AMP motor delivers 3,200 RPM to quickly notch or cut holes in thick wood stock, and will cut lap joints up to 5-1/8" in. The razor sharp chain is engineered for clean and accurate cutting, with a large adjustable vise and knob for increased versatility. It weighs only 38.1 lbs. for increased portability.

Standard Equipment:

• 7104L Chain Mortiser
• 21/32" Cutter Chain
• Wrench
• 100 cc Oil Supply

Specifications:

• Amperage: 10.5
• No-load RPM: 3,200
• Capacities...
  Max Hole Width: 5-1/8"
  Max Hole Width: 1-1/4"
  Max Hole Depth: 6-1/8"
• Size: 15-1/4"x 11-3/4"x 20-1/4"
• Weight: 38.1 lbs

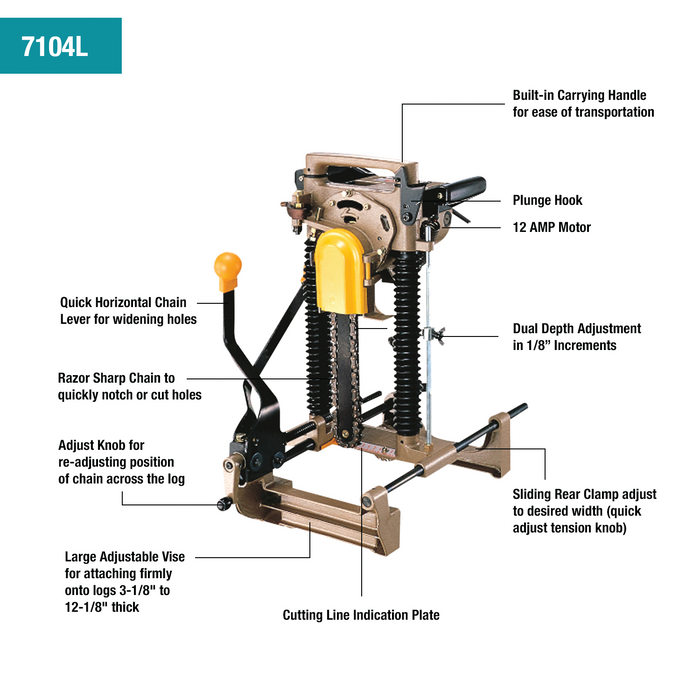

Features:

• The 7104L is an innovative power tool that notches or cuts through-holes in thick wood stock quickly, neatly and accurately.
• Perfect for timber framing and log home building.
• Extremely portable at only 37.4 lbs.
• Cuts lap joints up to 5-1/8".
• Large adjustable vise for attaching firmly onto logs 3-1/8" to 12-1/8" thick.
• Sliding rear clamp adjustable to desired width with a quick adjust tension knob.
• Clamp tension lever for a firm hold on log.
• Plunge depth adustment in 1/8" increments.
• Cutting line indication plate.
• Adjust knob for re-adjusting position of chain across the log.
• Quick horizontal chain lever for widening holes.
• Chain tension adjustment cover with snap action.
• Professional 10.5 AMP motor.
• Razor sharp chain to quickly notch or cut holes.
• Durable plastic boot protects twin steel rails.
• Externally accessible carbon brushes for easy serviceability.
• The 7104L chain mortiser has a built-in carrying handle for ease of transportation.
