Klein ET450 Advanced Electrical Circuit Breaker Finder and Wire Tracer Kit

Trace Energized and Non-Energized Breakers, Fuses, and Wires

The Klein Tools ET450 Advanced Circuit Tracer Kit is a professional tracer for energized and non-energized breakers, fuses, and wires. When the Transmitter is connected to a circuit, the Receiver's sensitivity can easily be adjusted to detect the transmitted signal on breakers, fuses, and wire through drywall, cement block, and underground. Kit comes with transmitter, receiver, blade and ground prongs, alligator clips, 3-Foot and 20-Foot lead adapters, AC plug leads, instructions, all required batteries, and a hard carrying case with handle for convenient transportation and storage.

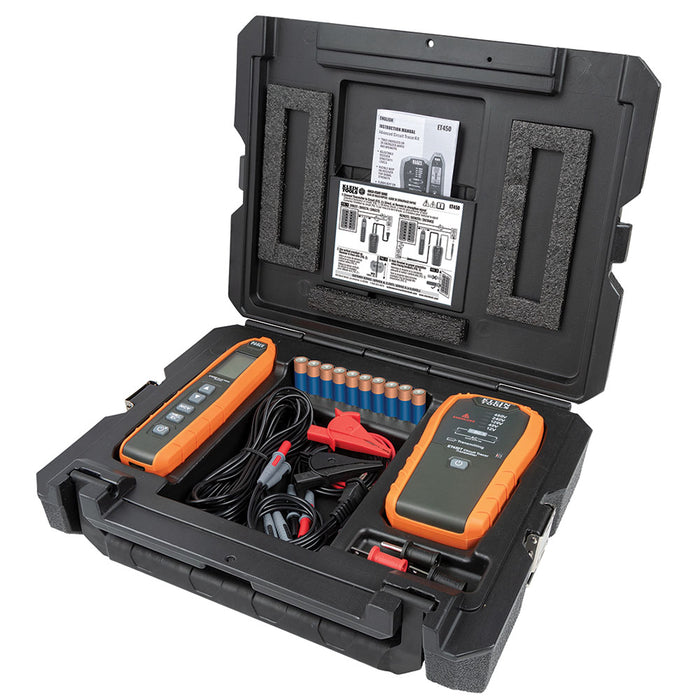

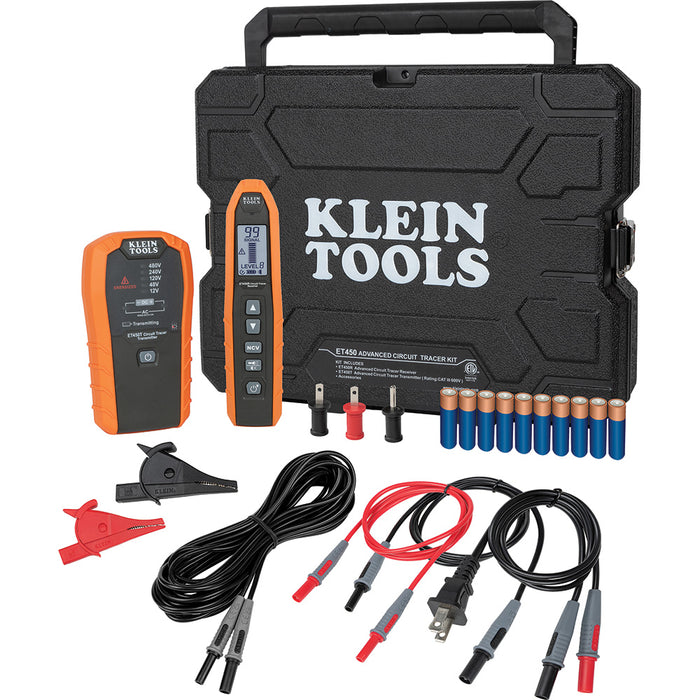

Includes:

• (1) Transmitter
• (1) Receiver
• (1) Blade and Ground Prongs
• (1) Alligator Clips
• (1) 3' and 20' Lead Adapters
• (1) AC Plug Leads
• (1) Instructions
• (1) All Required Batteries
• (1) Hard Carrying Case

Specifications:

• Material: ABS and Electronic Components
• Batteries: Transmitter: 6 × 1.5V AA Alkaline; Receiver: 4 × 1.5V AA Alkaline
• Battery Life: Up to 24 hr
• Drop Protection: 6'
• Display: Receiver: LCD with Backlight
• Control Type: Transmitter and Receiver
• Voltage: External Indicators for 12V, 48V, 120V, 240V, and 480V
• Frequency: Transmitter: AC 45Hz to 65Hz; Receiver: 33kHz
• Ingress Protection: IP42
• Pollution Degree: 2
• Tests Continuity: No
• Integral Lead Storage: No
• Interchangeable Leads: Yes
• Lead Length: 20'
• Standard: CAT III 600V
• Overall Length: 16.12"
• Overall Height: 4"
• Overall Width: 12.75"
• Weight (oz): 100.5 oz

Features:

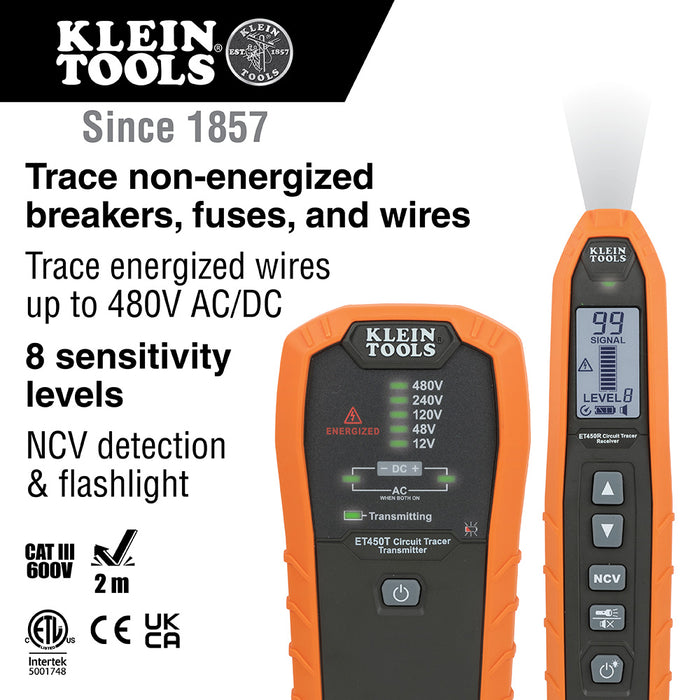

• The Advanced Circuit Tracer Kit provides reliable tracing of energized or non-energized breakers, fuses, and wires

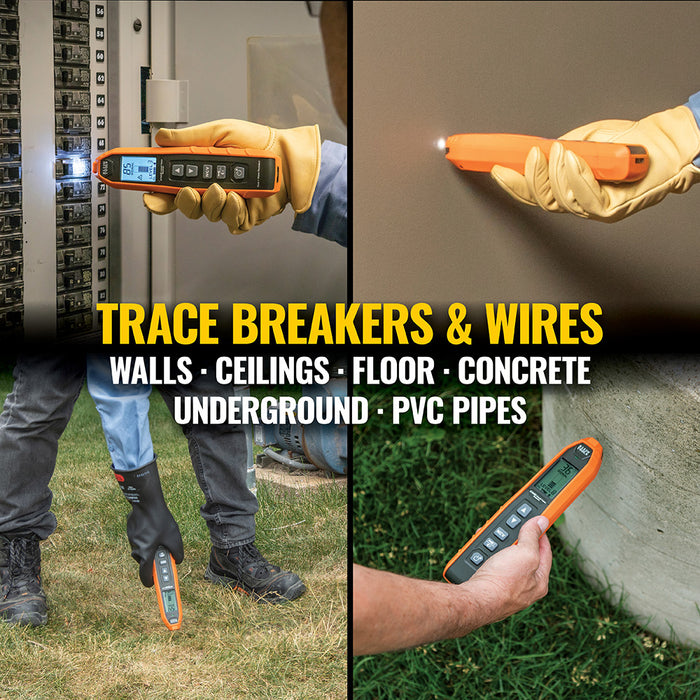

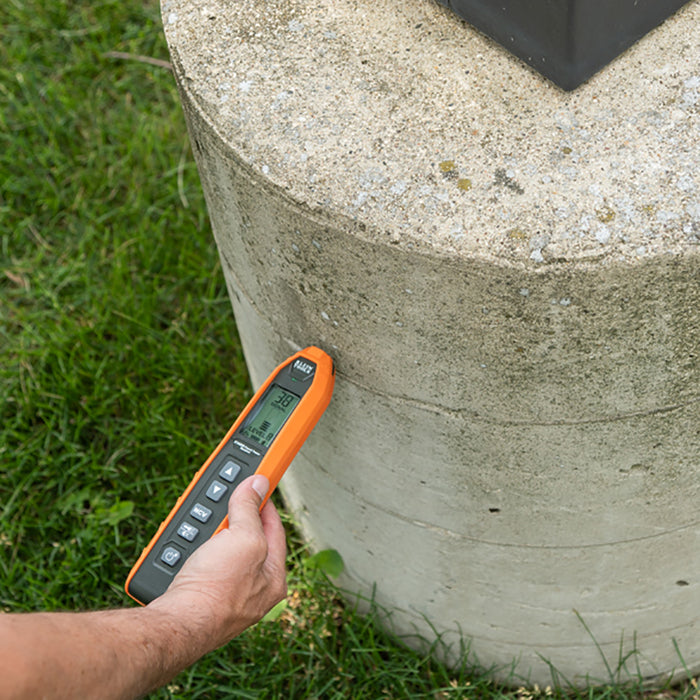

• Easily adjust receiver sensitivity level to detect the transmitted signal through drywall, cement block, and underground
• Versatile applications include tracing wires, conduit or pipes, or a single wire in a bundle
• Audible beep and visual indicators on receiver denotes signal strength
• Receiver features a flashlight for illumination in low-light areas and NCV function to test if wires are energized
• Transmitter has AC/DC external voltage indicators of 12V, 48V, 120V, 240V, and 480V
