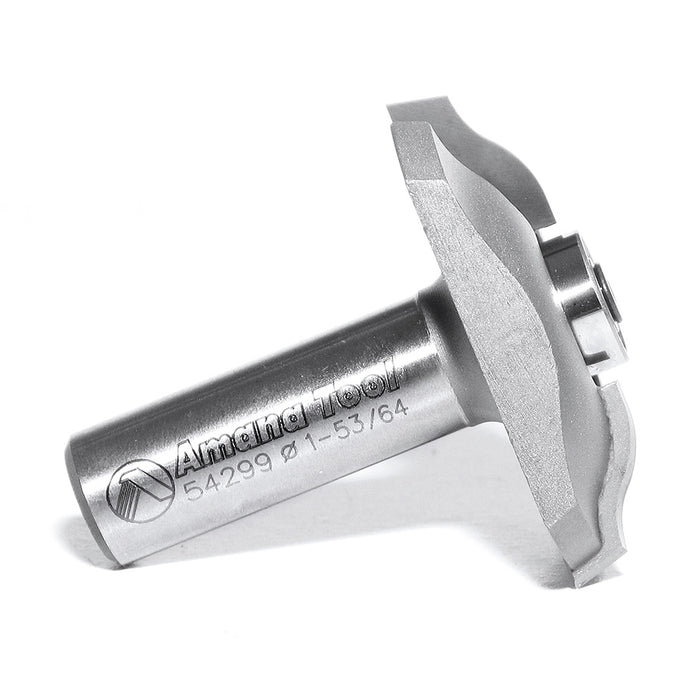

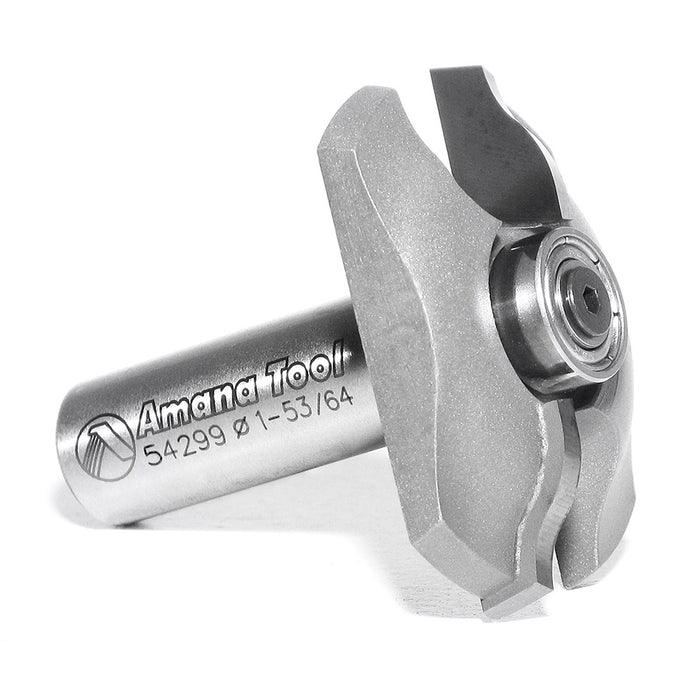

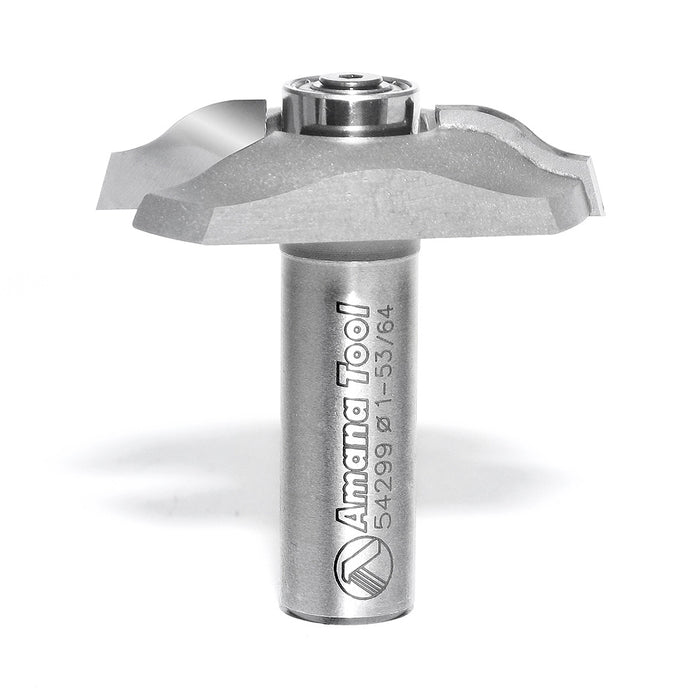

Amana 54299 Architectural Base Molding Router Bit

Architectural Router Bits > Base Molding Ogee Edge Detail > Carbide Tipped, 19/64" x 13/32" Rad x 1-53/64" Dia x 3/8" x 1/2" Shank with Ball Bearing

One of the easiest ways to dress up a room is to replace the skimpy base molding with a wide, bold profile. Amana offers classic ogee profiles in two sizes so that you can choose a size that best fits with the architectural details in the room. For quick easy installation we recommend that you attach the molding to the top of the base. This method greatly simplifies installation by allowing for a butt joint on inside corners.

Standard Equipment:

• (1) Architectural Base Molding Ogee Edge Detail Router Bit (54299)

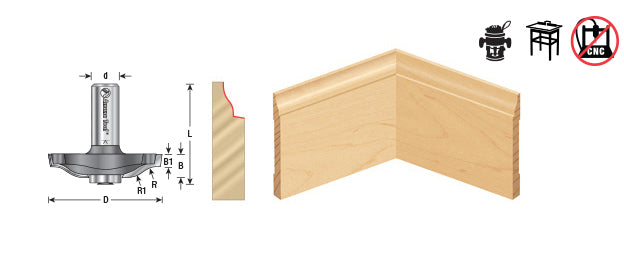

Specifications:

• Diameter (D): 1-53/64"
• Radius (R): 19/6"
• Cutting Height (B): 3/8"
• B1: 7/32"
• Shank (d): 1/2"
• Overall Length (L): 2-1/2"
• R1: 13/32"
• Flutes: 2
• Replacement Bearing: 47706

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
