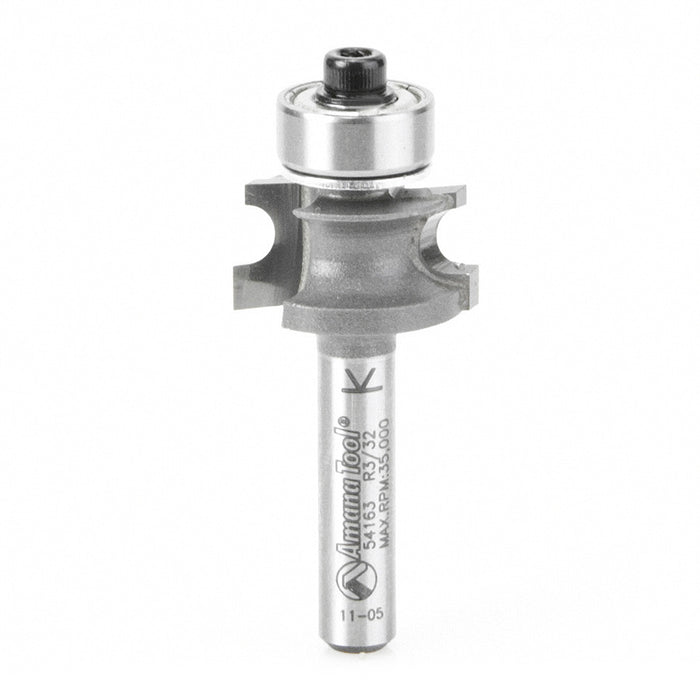

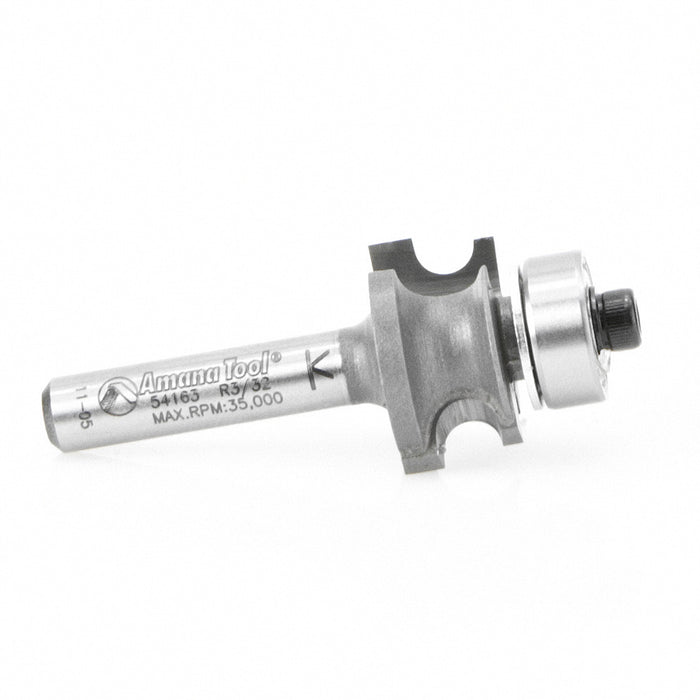

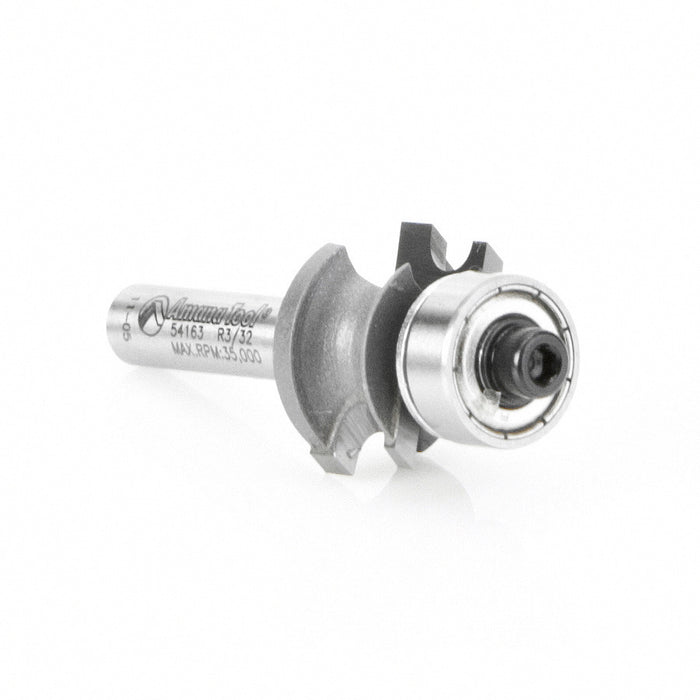

Amana 54163 Corner Beading Router Bit

Profiling Router Bits > Corner Round > Carbide Tipped, 3/32" Rad x 49/64" Dia x 25/64" x 1/4" Shank

Produce three slightly different profiles using this bit - an edge bead with or without a fillet and a full corner bead - by altering the bit extension or rolling the workpiece between passes. This group of hard-to-find tools is particularly suitable for antique reproductions and restoration projects. Use in a handheld or table-mounted router.

Standard Equipment:

• (1) Corner Round Beading Router Bit (54163)

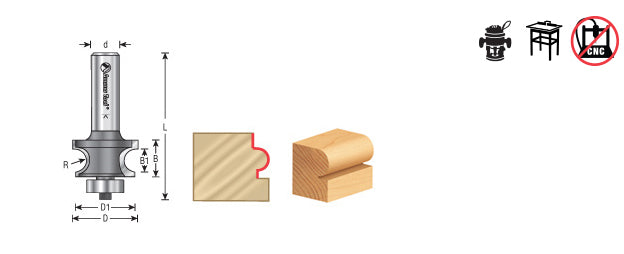

Specifications:

• Diameter (D): 49/64"
• D1: 11/16"
• Radius (R): 3/32"
• Cutting Height (B): 25/64"
• B1: 3/162"
• Shank (d): 1/4"
• Overall Length (L): 1-3/4"
• Flutes: 2
• Replacement Bearing: 47706

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
