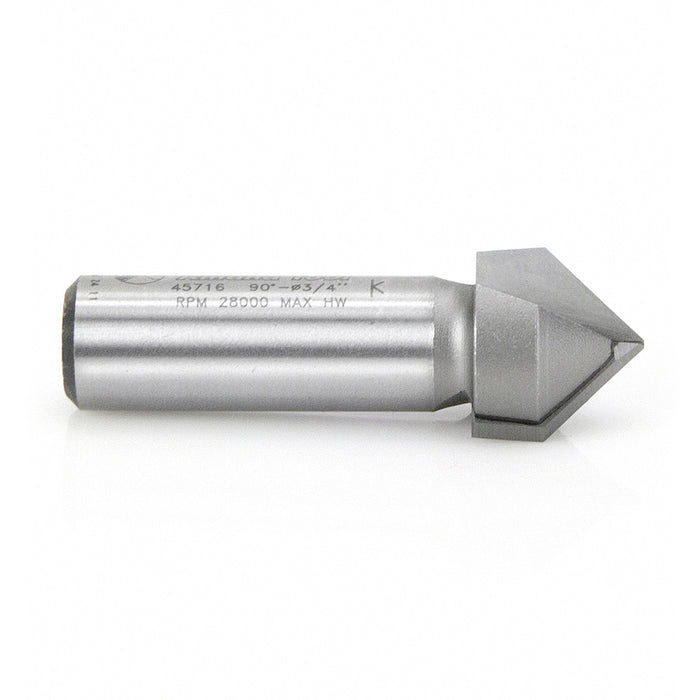

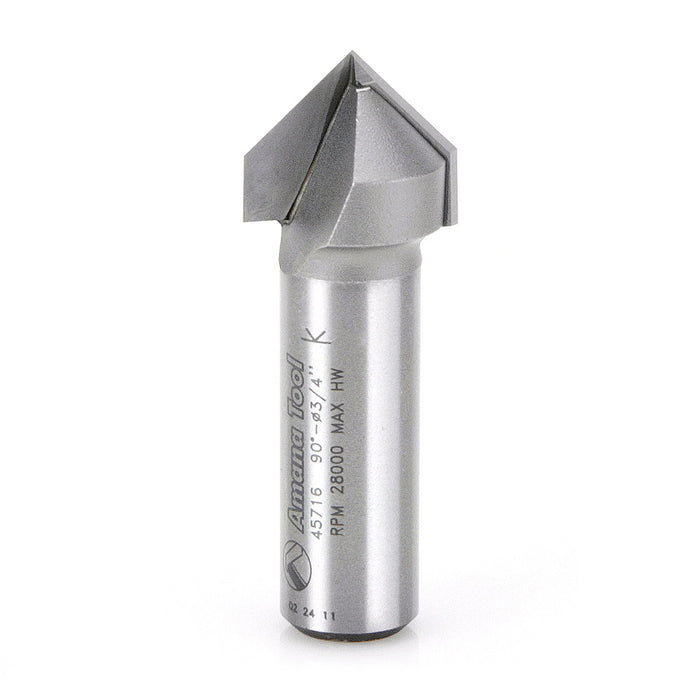

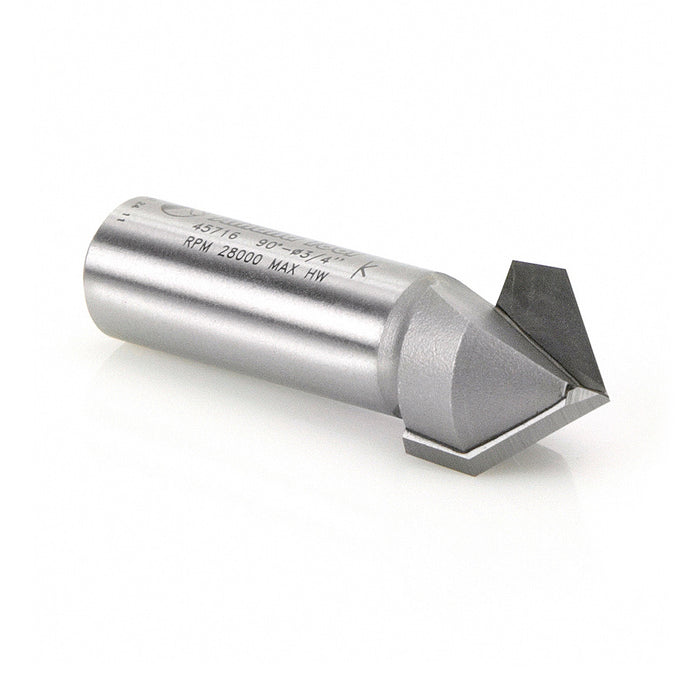

Amana 45716 Sign Making V-Groove Router Bit

Sign Making Bits > V-Groove > Carbide Tipped, 90 Degree x 3/4" Dia x 3/8" x 1/2" Shank

Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted and CNC routers.

Standard Equipment:

• (1) Sign Making V-Groove 90° Router Bit (45716)

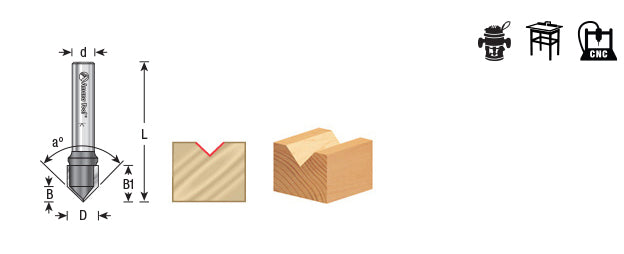

Specifications:

• Angle (a¡): 90°
• Diameter (D): 3/4"
• Cutting Height (B): 3/8"
• B1: 5/8"
• Shank (d): 1/2"
• Overall Length (L): 2-1/8"
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
