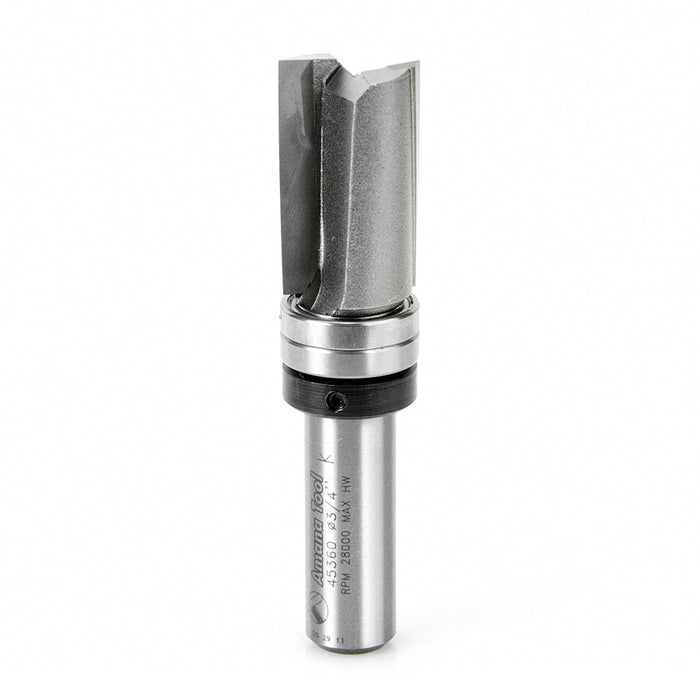

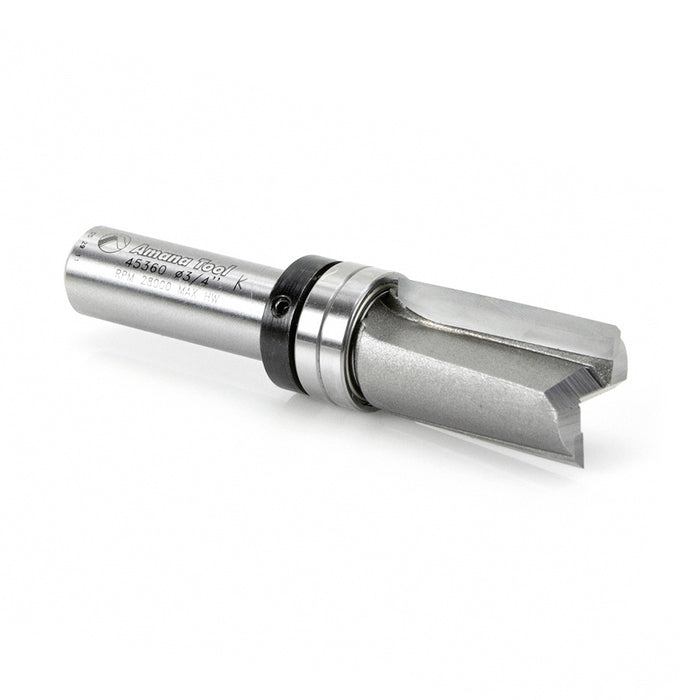

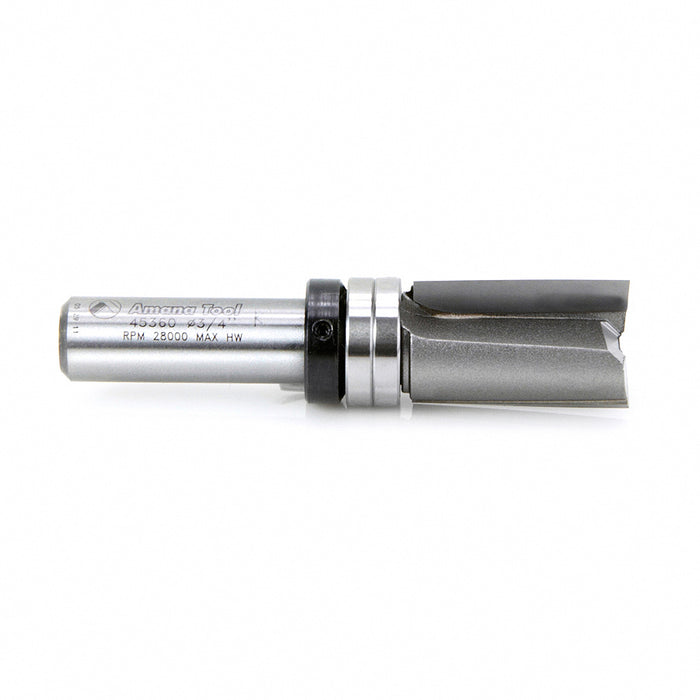

Amana 45360 Down Shear Face Plunge Template Bit with Upper Ball Bearing

Trimming Router Bits > Down Shear Flush Trim Plunge Template Router Bits > Carbide Tipped, 3/4" Dia x 1-1/4" x 1/2" Shank

This bit is essentially a plunge-cutting straight with a shank-mounted ball-bearing pilot. Versatile, useful for template/pattern routing of parts, joints, internal cuts and can be used in handheld and table-mounted routers. The template is attached to the workpiece, and the pilot bearing rides along its edge as the cutting edges rout the workpiece, forming an exact duplicate of the template. With a handheld router, the pattern is on top of the work; with a table-mounted router, the pattern is underneath the work.

Standard Equipment:

• (1) Down Shear Flush Trim Plunge Template Router Bit (45360)

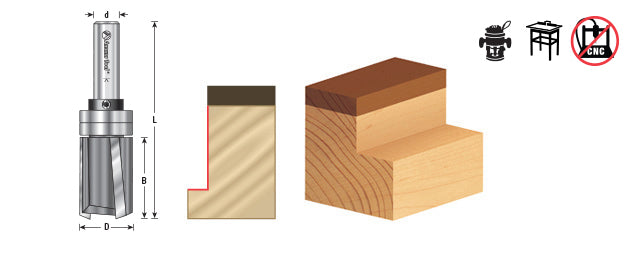

Specifications:

• Diameter (D): 3/4"
• Cutting Height (B): 1-1/4"
• Shank (d): 1/2"
• Overall Length (L): 3-1/4"
• Replacement Collar: 47739
• Replacement Bearing: 47721
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
