Amana 54110 Ogee Fillet Router Bit




$65.00
SKU AMAN54110

Door Making Router Bits: Ogee Router Bits, Carbide Tipped: 5/32" Rad x 1-3/8" Dia x 1/2" x 1/4" Shank

This ogee pattern has a step at the end of the concave portion of the curve. Using the optional 3/8" bearing produces a profile with a fillet at the convex end of the curve. Use in a handheld or table-mounted router.

Standard Equipment:

  • 54110 Ogee Fillet Router Bit

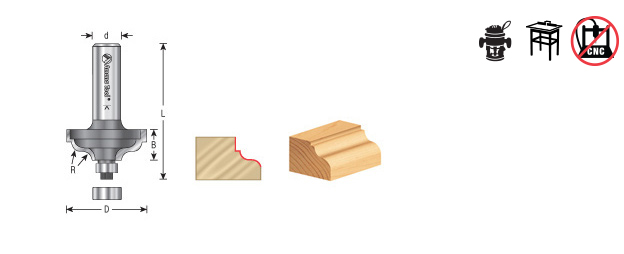

Specifications:

  • Diameter (D): 1-3/8"
  • Radius (R): 5/32"
  • Cutting Height (B): 1/2"
  • Shank (d): 1/4"
  • Overall Length (L): 2-1/16"
  • Replacement Bearing: 47706
  • Flutes: 2

Features:

  • High quality long lasting European sub-micrograin & micrograin carbide
  • Thick carbide for multiple resharpenings
  • Different carbide grades for different materials
  • Silver induction brazing for maximum carbide bonding strength
  • Produced according to Holz-BG German standards for safety and quality
  • Centerless ground shank for exact fit
  • Multi axis grinding
  • Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
  • Use of only solid bar stock steel (brazed bits)
  • Shanks laser etched with size, maximum RPM ratings and clamping depth
