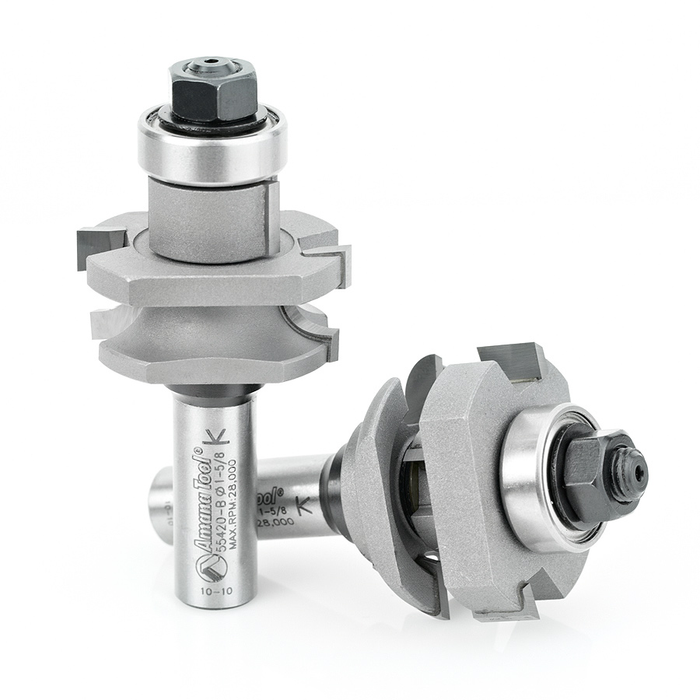

Amana 55420 Two Piece Concave Stile & Rail Router Bit

Door Making Router Bits: Two Piece Stile & Rail Router Bits, Carbide Tipped: 1-1/16" Dia x 1/4" x 1/2" Shank

These sets include two trim cutters for stock 7/8" through 1" in thickness. (These trim cutters can be removed for making bearing-guided cuts on stock under 7/8" thick.)

Use in a table-mounted router. Guide straight cuts with the fence, setting it tangent to the trim cutters. Use the pilot bearing only for cuts on curved rails or stiles; for cuts on curved parts 7/8" to 1" thick, a template must to used.

Standard Equipment:

• 55420 Two Piece Concave Stile & Rail Router Bit

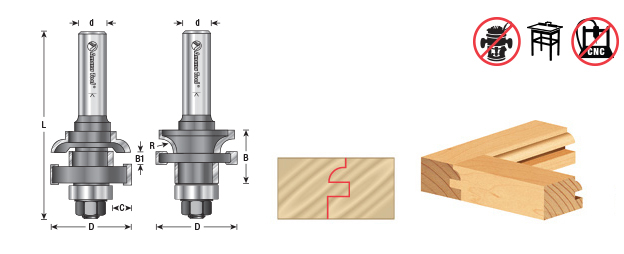

Specifications:

• Diameter (D): 1-5/8"
• Radius (R): 1/4"
• Cutting Height (B): 1-1/16"
• Shank (d): 1/2"
• C: 3/8"
• Overall Length (L): 3-5/16"
• Flutes: 2

Features:

• High quality long lasting European sub-micrograin & micrograin carbide
• Thick carbide for multiple resharpenings
• Different carbide grades for different materials
• Silver induction brazing for maximum carbide bonding strength
• Produced according to Holz-BG German standards for safety and quality
• Centerless ground shank for exact fit
• Multi axis grinding
• Bodies manufactured in single clamping for superior balance, symmetry, precision and centricity
• Use of only solid bar stock steel (brazed bits)
• Shanks laser etched with size, maximum RPM ratings and clamping depth
